S-Series 20A
(RD-S-TZ-020-12-E-BTC)
Reflex Drive’s S Series trapezoidal electronic speed controllers (ESC) offer a state-of-the-art solution to drive BLDC drone motors - and are proudly Made in India.
| Item Group | Component |
| Category | ESC |
| Protocols | DShot300 |
| Firmware | Proprietary Firmware |
Specifications
- Continuous Current Rating20A
- Burst Current Rating30A (30 sec)
- BEC VoltageNo BEC
- Number of Cells6S
- Programming OptionsNot Required
- BrakeCustomizable

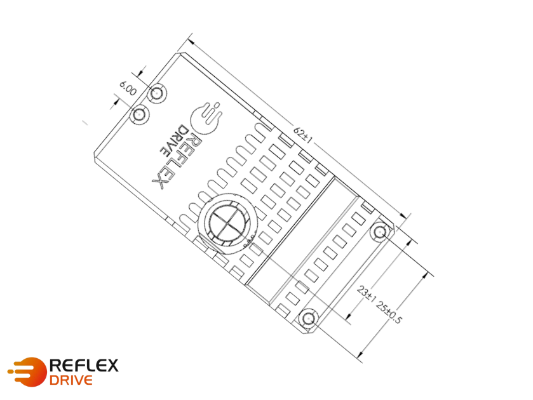

- Size62mmx31mmx25mm
- Weight57 grams
- CoolingCustomizable
- Protection FeaturesCustomizable
Reflex Drive
Key Features
- Reflex Drive's S Series ESCs, proudly made in India, deliver cutting-edge motor control solutions for BLDC drone applications.
- With 20A current rating, these ESCs support voltages of 6S, catering to drone enthusiasts and commercial operators.
- With PWM and DShot300 communication and IP3 waterproof rating (when enclosed), these ESCs are the go-to choice for high-performance drone missions.
- Customizable firmware and advanced safety features ensure exceptional performance and reliability in flight.
- The aluminum enclosure (optional) guarantees efficient heat dissipation and protection against rugged environmental conditions.
Deliverables
- S-Series 20A ESC with connections wires, weighing a total 57 grams
Disclaimer: Although we try to assure accuracy, Dronestacks is not liable for any errors on this page. If you find any errors, do let us know.Last Update: 28/10/2023
