S-Series 15A
(RD-S-TZ-015-06-H-BT)
Reflex Drive’s S Series trapezoidal electronic speed controllers (ESC) offer a state-of-the-art solution to drive BLDC drone motors - and are proudly Made in India.
| Item Group | Component |
| Category | ESC |
| Protocols | DShot300 |
| Firmware | Proprietary Firmware |
Specifications
- Continuous Current Rating15A
- Burst Current Rating25A (30 Sec)
- BEC VoltageNo BEC
- Number of Cells6S
- Programming OptionsNot Required
- BrakeCustomizable

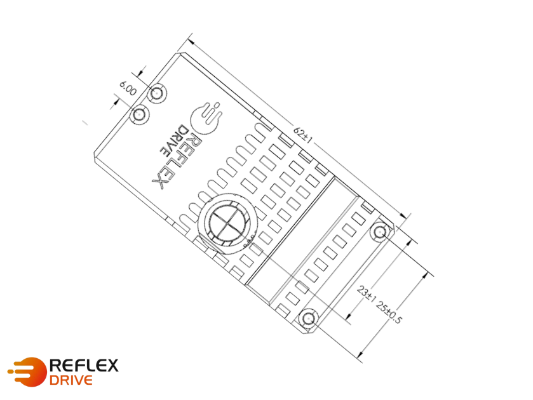

- Size62mmx31mmx25mm
- Weight28 Gram
- CoolingCustomizable
- Protection FeaturesCustomizable
Reflex Drive
Key Features
- With 15A current rating, these ESCs support voltage of 6S, catering to drone enthusiasts and commercial operators.
- Customizable firmware and advanced safety features ensure exceptional performance and reliability in flight.
- With PWM and DShot300 communication and IP3 waterproof rating (when enclosed), these ESCs are the go-to choice for high-performance drone missions.
- The aluminum enclosure (optional) guarantees efficient heat dissipation and protection against rugged environmental conditions.
- Light weight and small, optimal for space-constrained propulsion systems.
Deliverables
- S-Series 15A ESC with connections wires, weighing a total 28 grams (Without enclosure)
