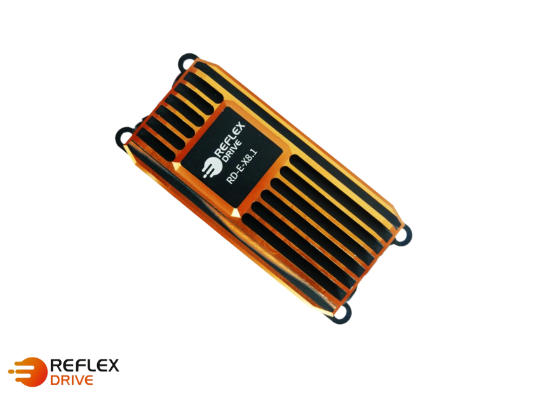

RD-E-X8.1 80A (FOC ESC)
(RD-X-FC-080-12-E-BTC)
Introducing Reflex Drive's FOC ESC, India's pride in innovation. This ESC boasts cutting-edge Field Oriented Control technology, encased in robust aluminum. Tailored for precision and efficiency, its customizable firmware and safety features cater to high-performance needs, perfect for commercial drones. With excellent heat dissipation and durability, it conquers challenging environments.
| Item Group | Component |
| Category | ESC |
| Protocols | PWM (Pulse Width Modulation) |
| Firmware | Proprietary Firmware |
-bxHZDiOEF-rdex_8_1.png)
Specifications
- Continuous Current Rating80A
- Burst Current Rating90A (Peak Current)
- BEC VoltageNo BEC
- Number of Cells4S-12S
- Programming OptionsNot Required
- BrakeCustomizable

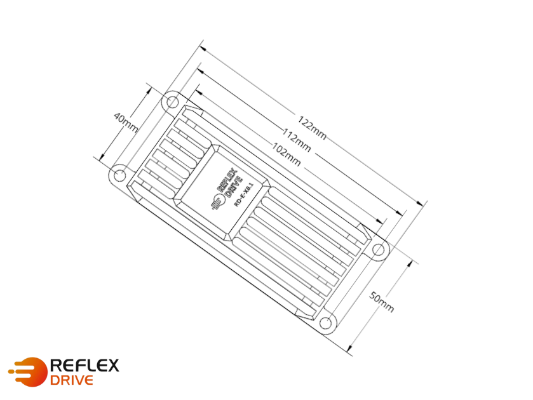

- Size122mmx50mmx25mm
- Weight226 Grams
- CoolingCustomizable
- Protection FeaturesCustomizable
Reflex Drive
Key Features
- With a continuous current range of 80A and support for 4S to 12S voltage, it's ideal for commercial drone applications
- Reflex Drive's FOC ESC, proudly made in India, offers cutting-edge performance with a durable aluminum enclosure.
- Customizable firmware and advanced safety features ensure precision and reliability in motor control.
- Equipped with Telemetry, Current Sense, and an IP3 waterproof rating, this ESC is ready for high-performance drone operations.
- The sleek design provides excellent heat dissipation and protection in challenging environmental conditions.
Deliverables
- X-Series 80A ESC with connections wires, weighing a total 226 grams
