Pencil ESC 30A
RD-P-TZ-030-06-E-BT
Reflex Drive's Pencil ESCs are state-of-the-art electronic speed controllers (ESC) that offer a lightweight solution for driving BLDC motors, proudly made in India.
| Item Group | Component |
| Category | ESC |
| Protocols | DShot300 |
| Firmware | Proprietary Firmware |
Specifications
- Continuous Current Rating30A
- Burst Current Rating36A (30 Sec)
- BEC VoltageNo BEC
- Number of Cells4S-6S
- Programming OptionsNot Required
- BrakeCustomizable
- Size12mm x 60mm
- Weight5 Grams
- CoolingCustomizable
- Protection FeaturesCustomizable
Reflex Drive
Key Features
- A continuous current of 30A and work with batteries in the 4S to 6S voltage range, providing adaptability to different setups.

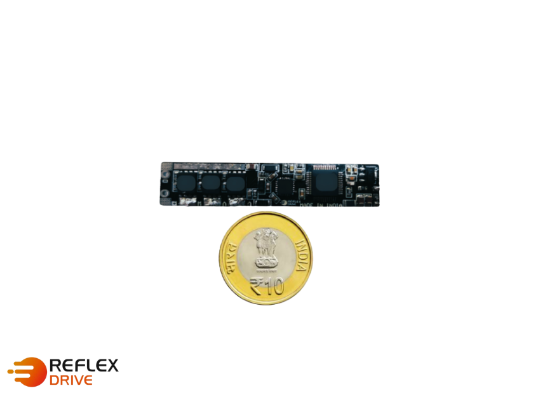

- Micro-Size, Pencil ESC is ideal for applications with limited space, offering efficient integration.
- Telemetry capabilities enable real-time data feedback, enhancing control and monitoring during operation.
- Supporting both PWM and DShot300 communication protocols, these ESCs offer compatibility with various control systems.
- The IP3 waterproof rating ensures these ESCs can withstand moderate moisture exposure, adding durability for rugged environments.
Deliverables
- Pencil ESC 30A with connections wires and bulk cap, weighing a total 5 grams
